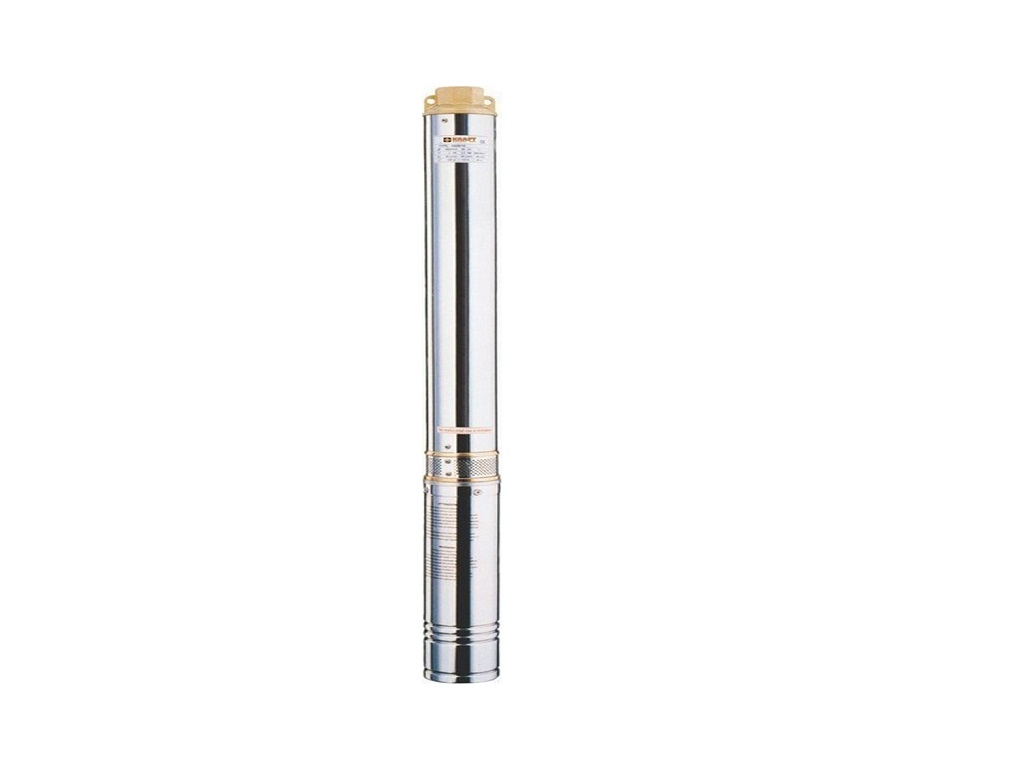

KRAFT - Underwater well pump 4 \'\' 4SD10 / 17

Suitable for pumping water from wells, tanks for domestic and professional use.
Minimum well diameter 4 '' '
Maximum water temperature +35. C
Maximum sand water content 0.25%
Maximum pump sink 100m
The construction of the pump is in accordance with the standards according to NEMA, it has a pump body and a stainless steel shaft, wingers and separators from PPO and an oil-fired motor

Specifications:

• Pump height: 1468mm
• Power (HP) 4
• Voltage 400/50 Hz
• Maximum manometric height 115m
• Maximum water supply 5.4m³ / h
• Mouth 1 "1/4

Supply Q (m3 / h)     Manometric H (m)
0                                 115
1.8                              112
3.6                              104
7.2                               93
9.0                               83
10.8                             67
12.6                             45
